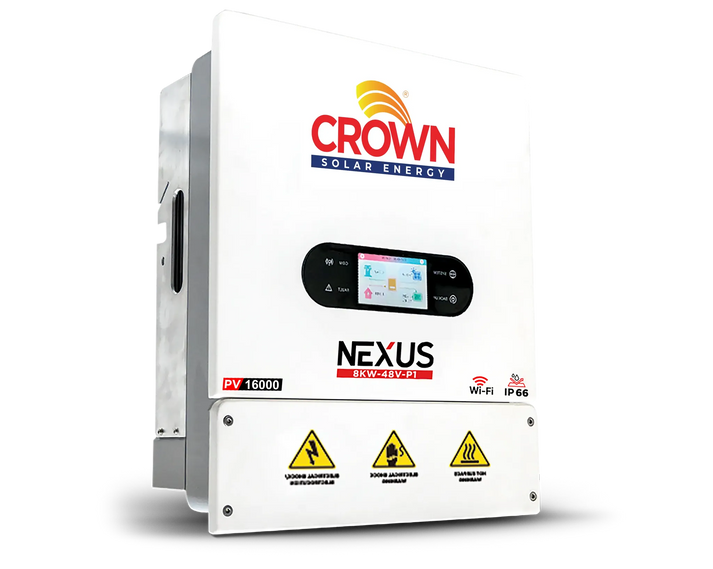

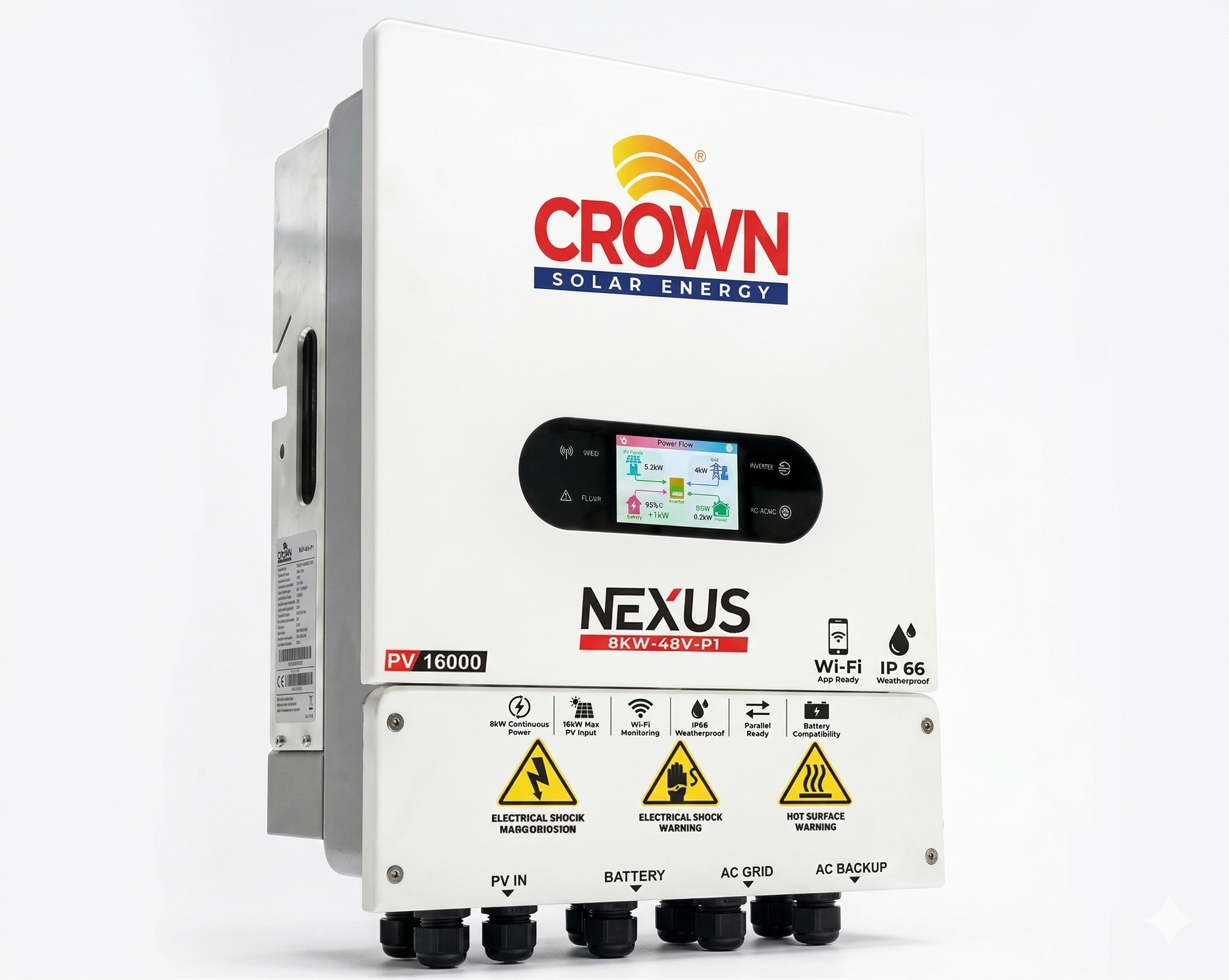

Crown Nexus Hybrid Solar Inverter CSE-N8K3P (8.8kW, 48V, 3 Phase)
The Crown Nexus CSE-N8K3P Hybrid Solar Inverter is a high-performance three-phase solution designed for both on-grid and off-grid applications. With dual MPPT tracking, wide voltage range, and IP66 protection, it ensures maximum energy efficiency and reliability in demanding environments.
🔹 Key Features
- Hybrid operation (On-Grid + Off-Grid)
- Dual MPPT for optimized solar energy harvesting
- Supports Lithium & Lead Acid batteries
- High efficiency up to 98%
- Wide PV input voltage range (200–800V)
- IP66 rated – dust & waterproof design
- Advanced protection features for safe operation
- Low noise intelligent cooling system (<55dB)
🔹 Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Crown |
| Series | Nexus |
| Model | CSE-N8K3P |
| Battery Type | Lithium / Lead Acid |
| Rated Battery Voltage | 48V |
| Max Charging Voltage | ≤60V (Configurable) |
| Max Charge/Discharge Current | 190A |
| Max PV Input Power | 16000W |
| Max DC Input Voltage | 1000V |
| MPPT Voltage Range | 200–800V |
| Starting Voltage | 150V |
| MPPT Number | 2 |
| Max Input Current | 18A / 18A |
| Rated Output Power (On-Grid) | 8800W |
| Rated Voltage | 380/400V |
| Frequency | 50/60Hz |
| Max Output Current | 13.3A |
| Power Factor | 1 (-0.8 to +0.8) |
| Rated Output Power (Off-Grid) | 8800W |
| Max Output Current (Off-Grid) | 13.3A |
| Maximum Efficiency | 98% |
| European Efficiency | 94.5% |
| Cooling | Intelligent Forced Air Cooling |
| Noise Level | <55 dB |
| Operating Temperature | -25°C to 60°C |
| Humidity | 0–95% |
| Altitude | ≤4000m |
| Protection Class | IP66 |
| Topology | HF Isolation (Battery Side) |
| Weight | 38 kg |
| Dimensions (W×H×D) | 475 × 683 × 256 mm |
| Safety & EMC Standards | NB/T32004-2018, IEC62109, IEC61000, IS16169, IS16221 (BIS), NRS-097-2-1, VDE-4105, EN50549-1, IEC61727 |
| Grid Standards | IEC62116, IEC61683, IEC60068 |
🔹 Protection Features
- PV reverse polarity protection
- Insulation resistance detection
- Residual current detection
- Overcurrent & short circuit protection
- Overvoltage protection
🔹 Applications
- Residential solar systems
- Commercial installations
- Hybrid solar systems with battery backup
- Off-grid power solutions
🔹 Why Buy from ElectroStore.pk?
- 100% Genuine Crown Products
- Fast Delivery Across Pakistan
- Technical Support from Electrical Experts
- Competitive Pricing for Installers & Engineers
