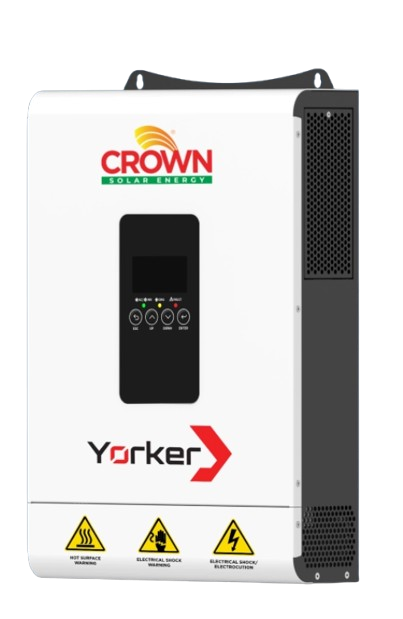

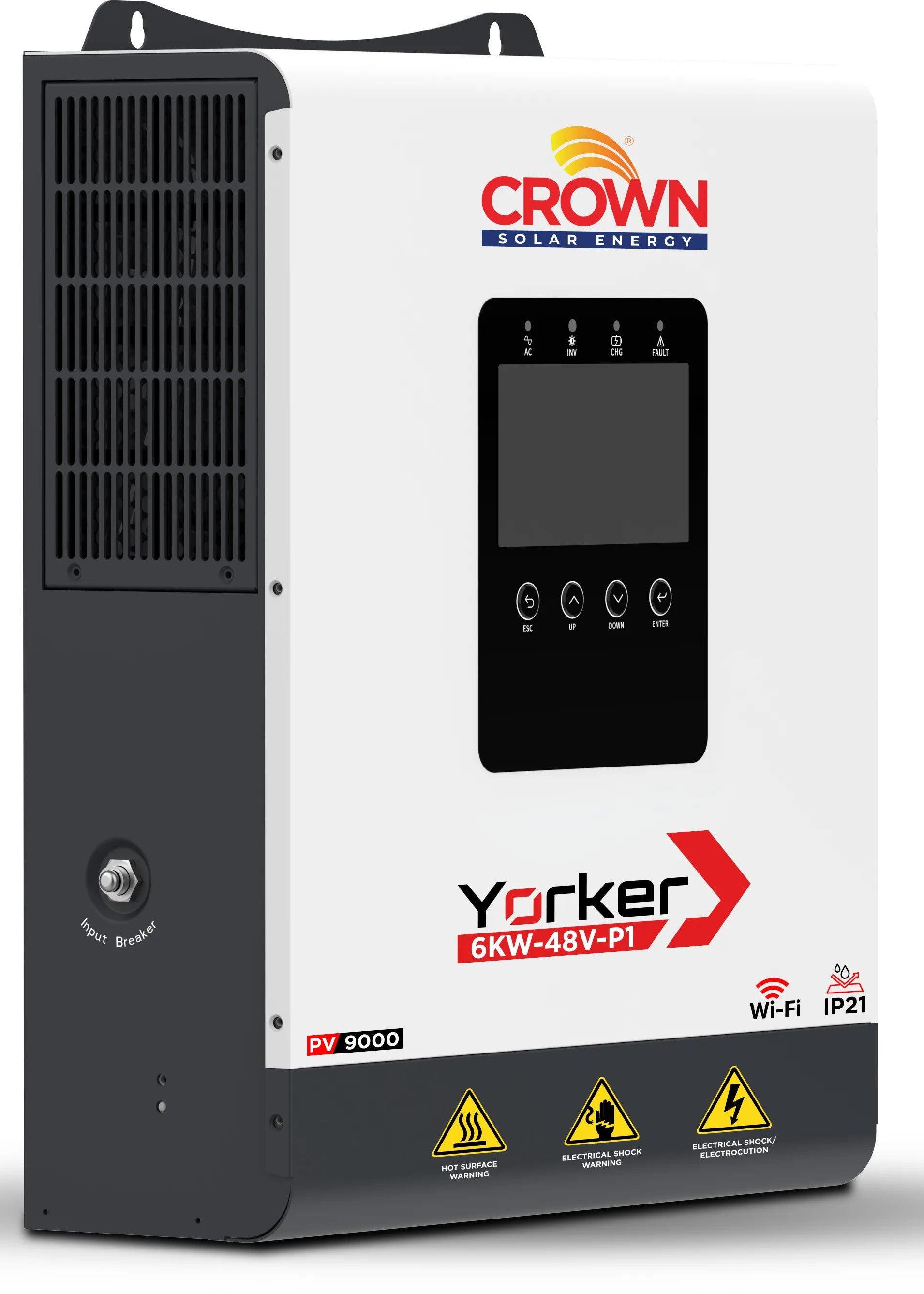

Crown 6kW Hybrid Solar Inverter 48V Single Phase (CSE-Y6K48VP1)

Crown 6kW Hybrid Solar Inverter 48V (Single Phase CSE-Y6K48VP1)

The Crown 6kW Hybrid Solar Inverter is a powerful and efficient solution designed for residential and small commercial solar systems. With support for lithium and lead-acid batteries, it provides seamless integration between solar panels, grid, and battery storage.

🔹 Key Features

• 6kW hybrid inverter for solar + battery + grid operation
• Supports lithium and lead-acid batteries
• Wide MPPT voltage range for flexible solar design
• High efficiency and stable output performance
• Pure sine wave output for sensitive appliances
• Compact and modern design

🔹 Battery Specifications

• Battery Type: Lithium / Lead-acid
• Battery Voltage Range: 42 – 61V
• Nominal Voltage: 48V
• Max Charging Current: 120A

🔹 Solar (PV) Input

• Max PV Input Power: 9000W
• MPPT Voltage Range: 60 – 450V
• Best Operating Voltage: 300 – 340V
• Max PV Voltage: 500V
• Max PV Input Current: 32A

🔹 AC Input

• Voltage: 220/230V AC
• Frequency: 50/60Hz
• Max Input Current: 40A

🔹 AC Output

• Output Voltage: 220/230V AC
• Output Power: 6000W
• Max Output Current: 27A
• Power Factor: 1

🔹 Protection Features

• Overload protection
• Over current protection
• Short circuit protection
• Over/under voltage protection

🔹 Technical Specifications

🔹 Applications

• Home solar systems
• Hybrid solar + battery backup systems
• Small commercial installations
• UPS replacement solutions

🔹 Key Advantages

• High PV input capacity (up to 9kW)
• Compatible with lithium batteries
• Efficient backup during load shedding
• Stable and clean power output

🔹 Important Notes

• WiFi not included (external module required)
• Professional installation recommended
