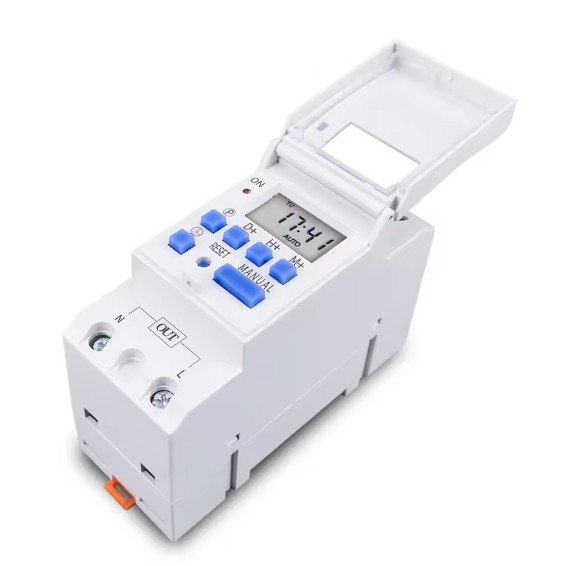

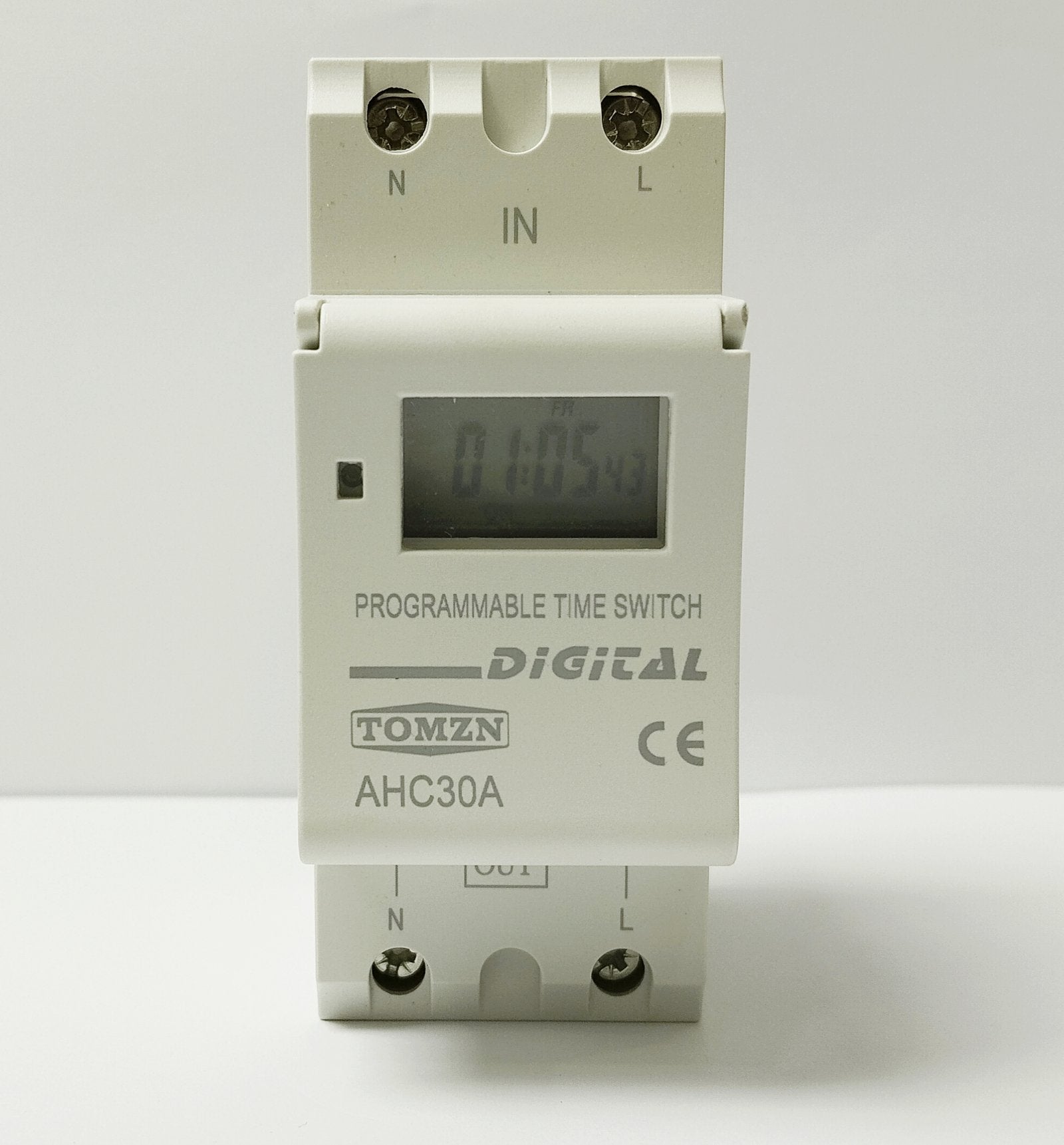

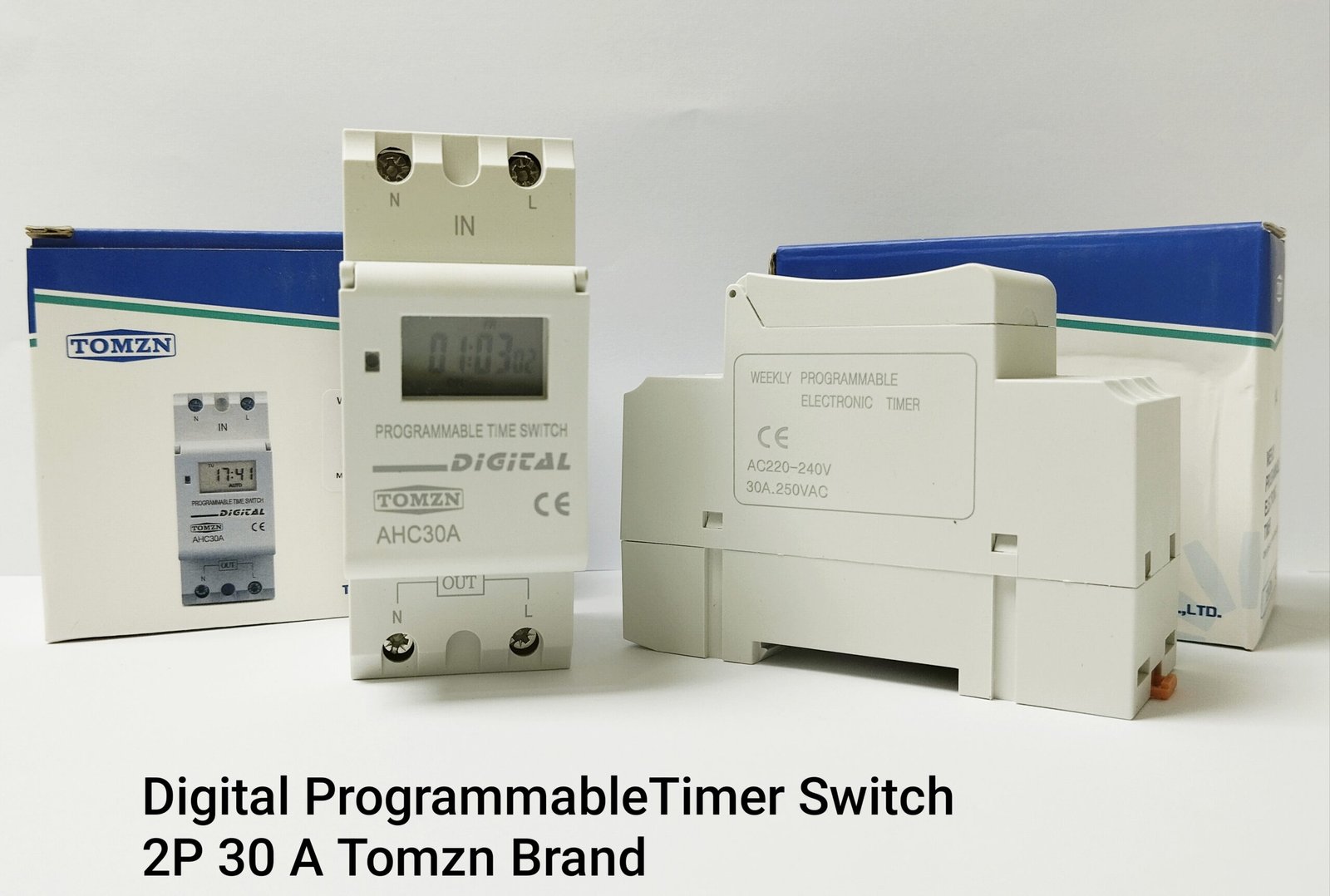

Tomzn Digital Timer Switch 30A 2P (Weekly Programmable DIN Rail Time Relay 220V/230V)
The Tomzn Digital Timer Switch is a reliable and programmable time control device designed for automatic ON/OFF switching of electrical loads. With weekly scheduling capability, it allows users to automate operations for lighting, appliances, pumps, and industrial equipment.
🔹 Key Features
- Weekly programmable timer (7-day scheduling)
- Up to 16 ON/OFF programs
- 2P (double pole) configuration
- Rated current 30A
- DIN rail mounting design
- LCD display for easy programming
- Compact and reliable design
🔹 Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Tomzn |
| Model | AHC30A |
| Product Type | Digital Timer Switch |
| Rated Current | 30A |
| Poles | 2P |
| Rated Voltage | 220V / 230V AC |
| Frequency | 50/60Hz |
| Programs | 16 ON/OFF programs |
| Minimum Interval | 1 minute |
| Timer Range | 1 minute – 168 hours |
| Display | LCD |
| Power Consumption | Max 4.5 VA |
| Backup Battery | 1.2V (up to 60 days memory backup) |
| Operating Temperature | -20°C to +50°C |
| Mounting Type | DIN Rail |
🔹 Applications
- Lighting automation
- Water pumps control
- Solar system load scheduling
- Industrial equipment automation
- Home and office automation
🔹 Key Advantages
- Automates electrical operations
- Reduces manual intervention
- Saves energy and improves efficiency
- Easy to program and operate
🔹 Important Notes
- Not WiFi-enabled (manual programming only)
- Installation should be done by qualified personnel
