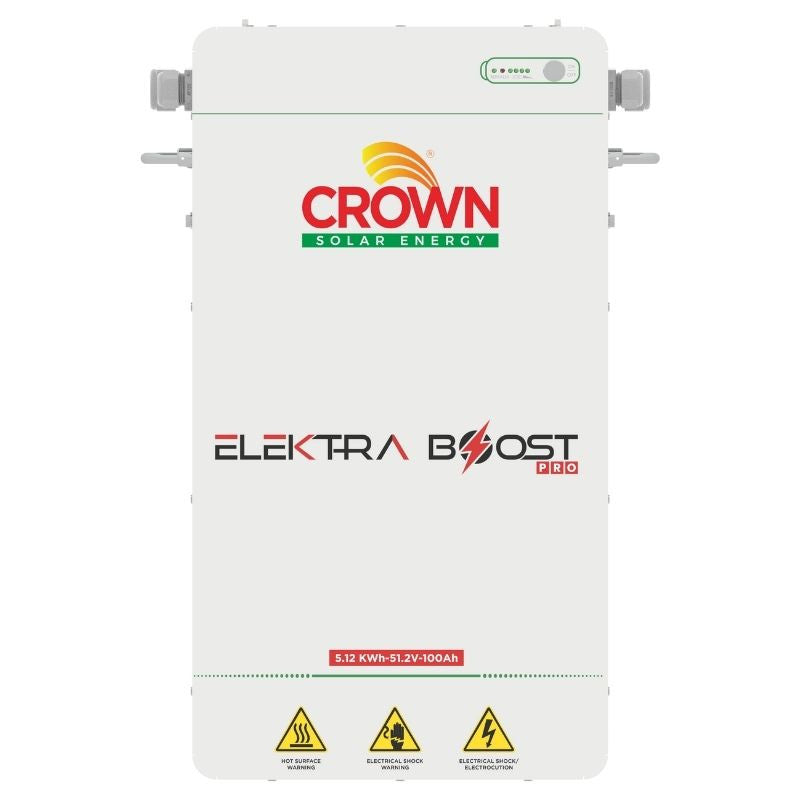

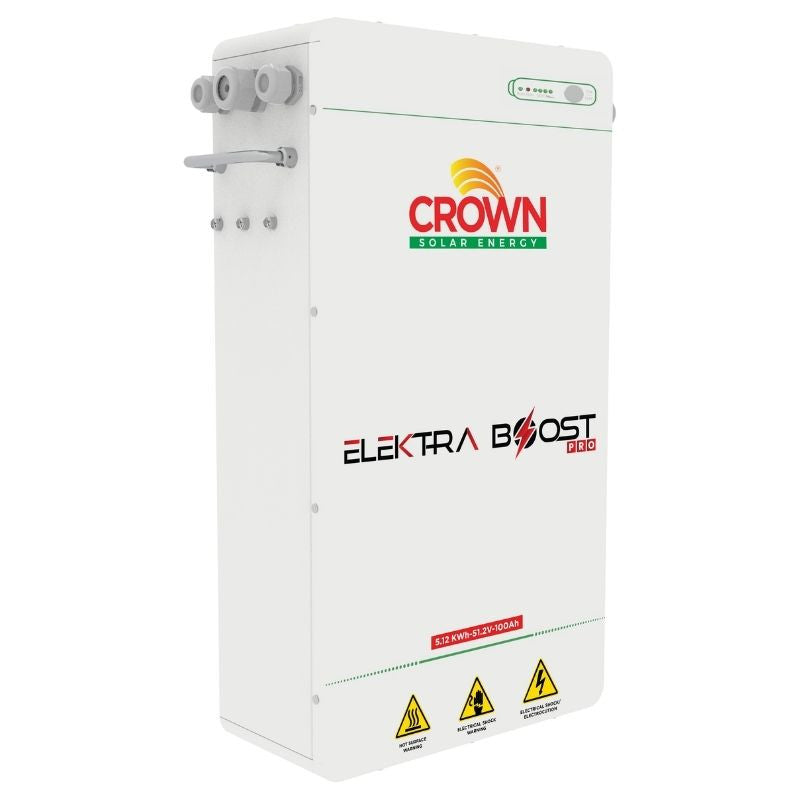

Crown 5.12kWh Lithium Battery 51.2V 100Ah Wall/Floor Mount (CSE-ESS(L)-51.2V100AH)

Crown 5.12kWh Lithium Battery 51.2V 100Ah (CSE-ESS(L)-51.2V100AH)

The Crown 5.12kWh Lithium Battery is a high-performance LiFePO₄ energy storage solution designed for solar systems, hybrid inverters, and backup power applications. With a 51.2V nominal voltage and 100Ah capacity, it provides reliable energy storage, long cycle life, and stable performance for residential and commercial installations.

🔹 Key Features

• 5.12kWh lithium battery module for solar energy storage
• LiFePO₄ cell chemistry for safety and long life
• 51.2V nominal voltage with 100Ah capacity
• Usable energy up to 4.6kWh
• Supports wall-mounted and floor-stand installation
• RS485, RS232, and CAN communication interfaces

🔹 Battery Specifications

• Rated Energy: 5.12kWh
• Usable Energy: 4.6kWh
• Battery Module Energy: 5.12kWh
• Cell Type: LFP (LiFePO₄)
• Cell Configuration: 16S1P
• Rated Capacity: 100Ah
• Nominal Voltage: 51.2V
• Operating Voltage Range: 40 – 57.6V
• Recommended Voltage Range: 44.8 – 56.8V

🔹 Charge & Discharge Performance

• Recommended Charge/Discharge Current: 50A
• Max Discharging Current: 100A
• Max Charging Current: 70A

🔹 Communication & Integration

• Communication Ports: RS485, RS232, CAN
• Compatible with hybrid inverter systems
• Suitable for monitored battery-bank operation

🔹 Mechanical & Environmental Data

• Weight: 45kg
• Dimensions: 454 × 585 × 135 mm
• Operating Temperature: Charge 0 to +55°C, Discharge -20 to +55°C
• Recommended Operating Temperature: 15 – 30°C
• Relative Humidity: 5% – 95%
• Cooling: Natural Convection
• Ingress Protection: IP21

🔹 Technical Specifications

🔹 Applications

• Residential solar battery storage systems
• Hybrid inverter installations
• Backup power systems
• Off-grid and load-shedding backup solutions

🔹 Key Advantages

• Long cycle life with LiFePO₄ safety chemistry
• High reliability for daily charge/discharge use
• Multiple communication options for inverter integration
• Flexible wall or floor installation

🔹 Important Notes

• Recommended DoD: 90%
• Indoor installation recommended
• Professional installation is advised
