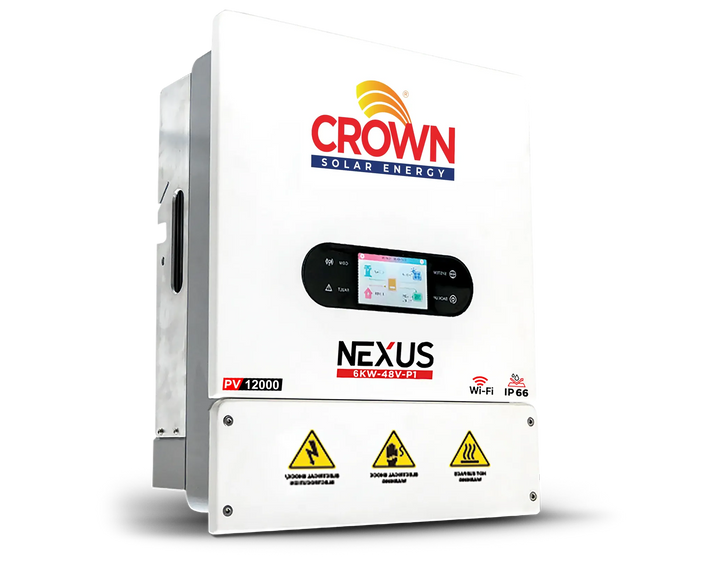

Crown 6kW Hybrid Solar Inverter 48V Single Phase (CSE-N6K48VP1)

Crown 6kW Hybrid Solar Inverter 48V (Single Phase CSE-N6K48VP1)

The Crown 6kW N-Series Hybrid Solar Inverter is an advanced high-performance inverter designed for residential and commercial solar systems. With improved MPPT capability and higher PV input power, it ensures maximum energy utilization and reliable backup performance.

🔹 Key Features

• Advanced 6kW hybrid inverter with enhanced PV capacity
• Supports lithium and lead-acid batteries
• High MPPT efficiency with wide voltage range
• Dual MPPT tracking for better solar optimization
• Pure sine wave output for sensitive electronics
• Compact IP66-rated design for durability

🔹 Battery Specifications

• Battery Type: Lithium / Lead-acid
• Battery Voltage: 48V
• Max Charge/Discharge Current: 120A
• Configurable Charging Voltage

🔹 Solar (PV) Input

• Max PV Input Power: 12,000W
• MPPT Voltage Range: 150 – 450V
• Starting Voltage: 125V
• Max PV Voltage: 500V
• Max PV Input Current: 18A / 18A
• MPPT Channels: 2

🔹 AC Output (On-Grid)

• Rated Output Power: 6000W
• Voltage: 220/230V AC
• Frequency: 50/60Hz
• Max Output Current: 27A
• Power Factor: 1 (-0.8 ~ +0.8)

🔹 AC Output (Off-Grid)

• Rated Power: 6000W
• Peak Power: >200% (15 sec)
• Voltage: 220/230V
• Frequency: 50/60Hz

🔹 Efficiency

• Max Efficiency: 97.6%
• European Efficiency: 97.5%

🔹 Protection Features

• PV reverse polarity protection
• Insulation resistance detection
• Residual current monitoring
• Over current protection
• Short circuit protection
• Over voltage protection

🔹 Technical Specifications

🔹 Applications

• Residential solar systems
• Hybrid solar + battery storage
• Load shedding backup systems
• Commercial small-scale installations

🔹 Key Advantages

• Higher PV capacity (12kW)
• Dual MPPT for better generation
• IP66 protection (outdoor capable)
• High efficiency performance

🔹 Important Notes

• WiFi optional (external module required)
• Professional installation recommended
