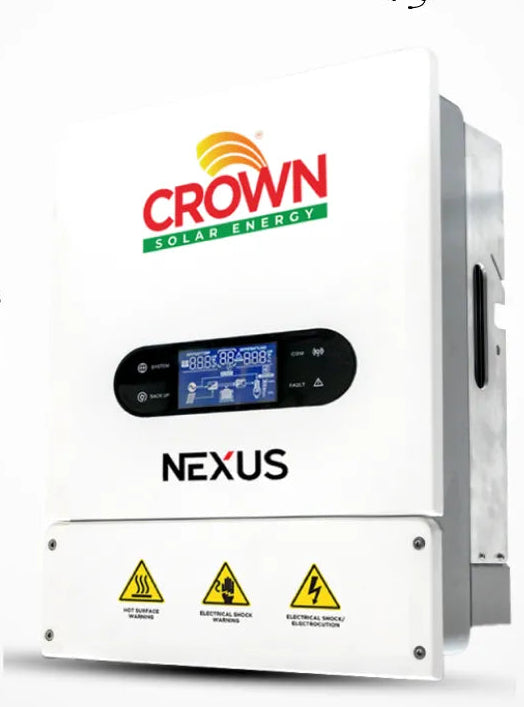

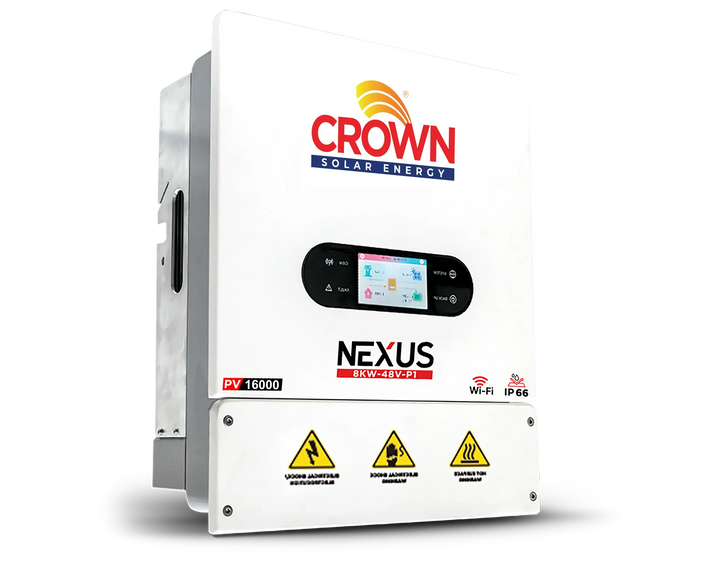

Crown 8kW Hybrid Solar Inverter 48V Single Phase (CSE-N8K48VP1)

Crown 8kW Hybrid Solar Inverter 48V (Single Phase CSE-N8K48VP1)

The Crown 8kW N-Series Hybrid Solar Inverter is a high-capacity solution designed for large residential and commercial solar systems. With powerful output, dual MPPT tracking, and high PV input capability, it ensures maximum energy generation and reliable backup performance.

🔹 Key Features

• High-capacity 8kW hybrid inverter for heavy loads
• Supports lithium and lead-acid batteries
• Dual MPPT technology for optimized solar generation
• Wide voltage range for flexible PV design
• Pure sine wave output for stable power
• IP66-rated enclosure for indoor/outdoor installation

🔹 Battery Specifications

• Battery Type: Lithium / Lead-acid
• Battery Voltage: 48V
• Max Charge/Discharge Current: 190A
• Configurable charging parameters

🔹 Solar (PV) Input

• Max PV Input Power: 16,000W
• MPPT Voltage Range: 150 – 450V
• Starting Voltage: 125V
• Max PV Voltage: 500V
• Max PV Input Current: 30A / 18A
• MPPT Channels: 2

🔹 AC Output (On-Grid)

• Rated Output Power: 8000W
• Voltage: 220/230V AC
• Frequency: 50/60Hz
• Max Output Current: 40A
• Power Factor: 1 (-0.8 ~ +0.8)

🔹 AC Output (Off-Grid)

• Rated Power: 8000W
• Peak Power: >200% (15 sec)
• Voltage: 220/230V
• Frequency: 50/60Hz

🔹 Efficiency

• Max Efficiency: 98%
• European Efficiency: 97.5%

🔹 Protection Features

• PV reverse polarity protection
• Insulation resistance monitoring
• Residual current detection
• Over current protection
• Short circuit protection
• Over voltage protection

🔹 Technical Specifications

🔹 Applications

• Large residential solar systems
• Commercial solar installations
• High-load backup systems
• Solar + battery hybrid setups

🔹 Key Advantages

• Handles heavy loads up to 8kW
• High PV capacity (16kW input)
• Dual MPPT improves generation efficiency
• Outdoor-ready IP66 design

🔹 Important Notes

• WiFi optional (external module required)
• Recommended for medium to large systems
• Installation by qualified personnel required
